I'll always remember the first time that I encountered the Burroughs
205. I was a freshman at the University of
Portland in the fall of 1963. Father
Duffy was my Calculus teacher and during a class that autumn, he mentioned
that the University was looking for someone to help out in the computer
center. Was anyone interested? Uncharacteristically for me in those
days, I
quickly raised my hand.
University of Portland computer center director, Peter C.
Knobloch explains some of the finer points of programming
to
two of his engineering students
A couple of days later I approached the computer room door. Two
classrooms on the first floor of the Engineering Building had been converted
into a computer center earlier that year. General
Insurance Company of America, based in Seattle, had donated to the
University a surplus B205 system that pretty well filled about eighty percent of
the space. A bit of office space took up the balance of the area.
As I walked through the door into the actual computer room, I was greeted by
the combination of electronic hum and rush of air conditioning that was typical
of early mainframe computers.
Burroughs recommended an area of about twenty by forty feet for a
computer room. This gave plenty of space to spread out the several
refrigerator-sized cabinets that made up a computer in the 1960s.
The U of P computer room was pretty typical of mainframe
installations at the time. The computer stood atop a four-inch
thick raised floor. The floor served two purposes. First, it
provided room to run the thick cables that interconnected the computer
and its peripheral devices such as the IBM 407 accounting machine that
served as a printer. Second, it served to allow the movement of
cool air from the air-conditioning system into the bottoms of all the
cabinets that were filled with heat-producing vacuum tubes.
The Datatron was already obsolete. With a 1954 introduction date, this was a
nine year old design, and that was the reason that General
Insurance was happy to part with it. But the computer still had plenty of life in it
for educational and some administrative purposes.
For the University of Portland to have its own computer on campus was quite a
mark of distinction. We were a Catholic liberal arts university with
slightly over two thousand students. Our downtown state college rival,
Portland State College, couldn't boast of its own computer for educational purposes although it had a great
programming instructor, Dr.
Robert Broussard, who utilized another Datatron. Miles to the south,
the distinguished engineering school of Oregon
State University could only point to its ALWAC III-e, a machine of
comparable age, power and design.
The Datatron, From Consolidated Engineering to Burroughs
The Datatron has a fascinating background as it evolved from a "skunk
works" project in the back room of an electronics instrument company in
southern California to become the backbone of the Burroughs Corporation's tardy
move into computers.
Consolidated Engineering Corporation was a well established manufacturer of
test instruments in the 1950s. Founded by Herbert Hoover, Jr., son of the
former U.S. president, CEC developed test instrumentation for the petroleum
industry. CEC was located in Pasadena and had a close working relationship
with Cal Tech. They developed a very successful line of Mass
Spectrometers. Clifford Berry, as Chief Physicist
at CEC held a number of patents in the Spectrometer field. Years
earlier, Berry had been half of the Atanasoff-Berry team that developed the
first rudimentary digital computer at Iowa State. (This machine was
demonstrated to John Mauchly of ENIAC fame in 1941 and therein lies another
chapter or two in everyone's modern day version of computer history.)
The major output of the Mass Spectrometer was data and lots of it. To
produce the needed analysis, one had to solve a set of simultaneous linear
equations. This required a lot of manual work with the calculators of the

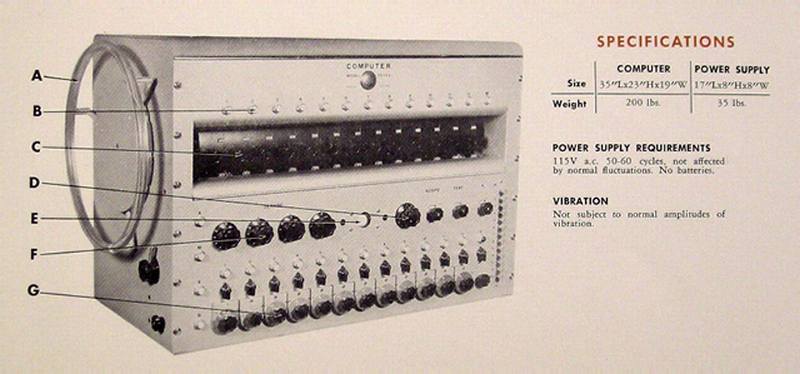

day. Cliff Berry and Sibyl Rock developed and patented an analog computer
that produced excellent results solving a series of 12 simultaneous equations in
12 unknowns. This was now 1946 and this analog computer further cemented
CEC's
position in the Spectrometer business. As more years passed, Berry
realized the potential for the digital computer to further enhance CEC's edge in
his part of the business. He pressed CEC to develop their own digital
computer. In 1951, CEC engaged Harry Huskey, then working on the National
Bureau of Standards SWAC computer at nearby UCLA as a lecturer on digital technology to
the project team.
Progress was relatively slow at first. CEC needed someone who could
bridge the gap between Huskey and the design team. Another mathematician,
this one an expert in number theory, the Norwegian Ernst Selmer was lecturing at
Cal Tech. Selmer had come to the United States to learn about electronic
computing technology and spent time at Princeton where the IAS computer was
being constructed. He was hired by CEC management as a consultant and ultimately designed most of the
logic for the Datatron.
By May of 1952, Chief Engineer, L. P. Robinson, was able to describe the
Datatron (then known as the CEC 30-201) as part of a Navy symposium at the
Pentagon on Commercially Available General-Purpose Electronic Digital Computers
of Moderate Price. To describe the Datatron as "commercially
Available" at this point was a bit of a stretch. It would be a full
year until the first "breadboard" version of the machine was complete
and over two years until the first production unit shipped.

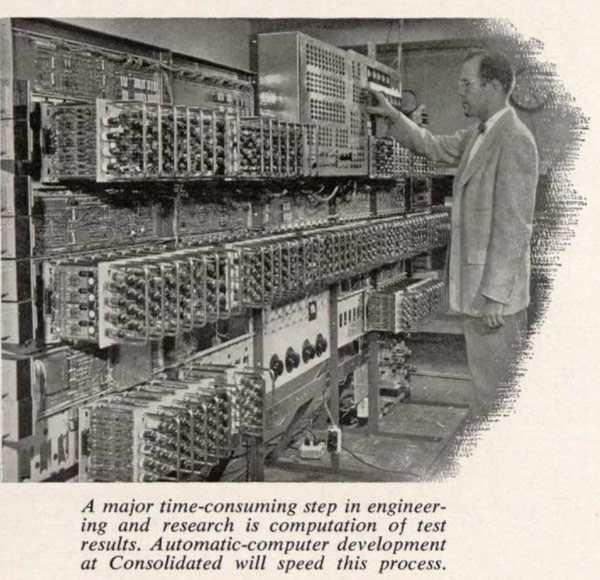

Experimental Breadboard version of the Datatron
While the technical team went about engineering the computer, CEC management
had other worries. They understood that the computer business was far
different from the instrument business that they were in. In 1952, they
designated the development group as a separate Computer Division and during the
summer of that year the team of about thirty people moved into a vacant market building at 717 North Lake Avenue in
Pasadena.
Realizing that the continued development of the CEC computer was going to
take a great deal of money, CEC management decided to spin off the Computer
Division as a separate corporation but retained a thirty-six percent ownership in the new

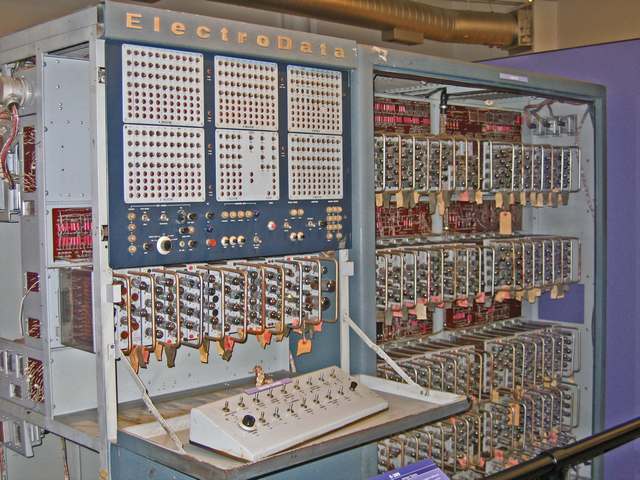

company, ElectroData Corporation. ElectroData went public on the American Stock Exchange at $3.50 a
share in April of 1954. It would rise as high as $21 in spite of a lack of profits.
Formal announcement of the ElectroData 203 computer took place in February of
1954. In April of 1954, the New York Times noted the introduction of a new
"electronic brain" by ElectroData at the bargain rate of about
$125,000. During 1954 ElectroData was running ads in Fortune promoting their Electronic
Data-Processing Equipment for Science, Industry and Commerce. In June of
1954, the first production model shipped to the nearby Jet Propulsion Laboratory
at Cal Tech. A total of seven systems were shipped in 1954 followed by
thirteen more in 1955. The production line was humming.

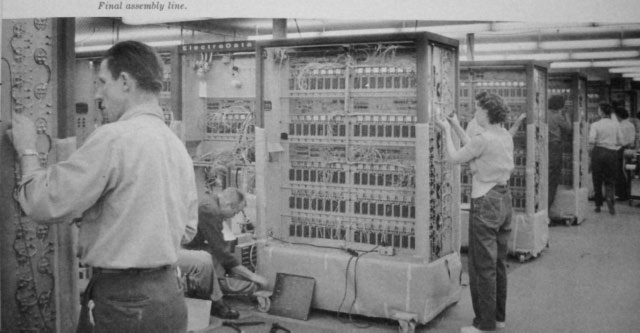

ElectroData Production Line in 1955
Since competitive pressures required that computer be available via lease,
costs continued to mount, however, and revenue was comparatively slim.
The new corporation had outgrown their first home and moved to a larger facility
at 460 Sierra Madre Villa, still in Pasadena. In early 1956, Phillip Fogg, Chairman of
CEC set up a board meeting to consider the future of his ElectroData computer
operation. ElectroData had now become the third largest manufacturer of
computers in the world! Fogg and the board realized that while they had an excellent product, continued
development, sales expense and rapid growth were going to require about $60
million over the next five years. This was twice the net worth of CEC.
CEC/ElectroData was on the
verge of throwing in the towel.
As fate would have it, that very day a phone call came in from John Coleman, the president
of Burroughs
Corporation. Now, Burroughs was a significant manufacturer of office
computation equipment. That meant primarily mechanical adding machines and
banking equipment at the
time. Anyone who ever had to move one of these beasts from one table to
another knows that if they were priced by the pound, Burroughs was probably
doing all right financially. Realizing that office calculation was going electronic, their
first venture into the marketplace was a timid one with a specialized
machine lacking a stored program architecture, the E101, rather than a General Purpose computer. They found their customers
saying, "No thanks, we are going with a full General Purpose
computer."
As Burroughs management looked around for a way to jump start their entry
into the computer field, they spotted ElectroData. On July 1, 1956 Burroughs purchased
ElectroData Corporation from CEC in a stock swap with one share of Burroughs at $34 a
share for each two shares of ElectroData.

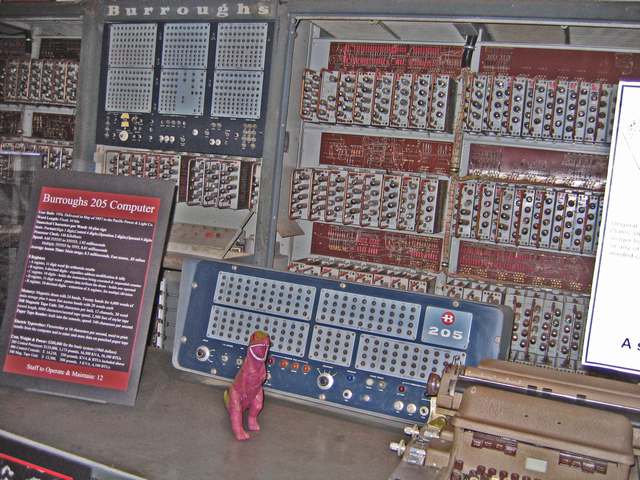

Regardless of whether you see reference to the Datatron as a CEC 30-201,
CEC 30-203, an ElectroData 204 or 205, or a Burroughs 205, it is all the same
machine. The numbers primarily signify the development and addition of new
peripherals. The CEC 30-201 described at the Pentagon had only paper tape
input and Flexowriter output. That machine had the same architecture,
clock cycle and performance as the later Burroughs 205. While the 201 only had
34 instructions, most of what was added later were instructions to handle the
Tape, Cardatron and Floating Point units.
What Made the Datatron Special?
It seems that almost everyone who encountered the Burroughs 205 and continued
their involvement with computers developed a real affection for the
machine. There are reasons for this, of course.
It Was Innovative
B-Register The Datatron is generally recognized as the
first computer to be marketed with an index register. There are
references on the Internet to this register being named for
Burroughs. Since the register was named about five years before
Burroughs acquired ElectroData, in fact, even before ElectroData was
spun off from Consolidated Engineering, we can pretty well dismiss that
theory. In fact the B-Register's origins lie in England. The
University of Manchester had developed the index register concept for
the Mark I (also known as MADM) in 1949 and named it the B-Box to
distinguish it from the accumulator, or A-Box. Mathematician, Harry Huskey, was
aware of the B-box because he had contacts at Manchester built up during a one-year
appointment in England during 1947 where he worked under Alan Turing at
Teddington on
the ACE computer. He introduced the index register concept to the Datatron design
team where Ernst Selmer immediately grasped the importance. The
B-register served two purposes. The first was to provide address
modification and looping countdown. A more interesting purpose was
that the B-register could be utilized during program loading and that
allowed subroutines to be written with relative addressing. This
provided for easy relocation of subroutines, a godsend to scientific and
engineering calculation programs.
High Speed Drum Access Technique. There were three
techniques used to deal with the fairly slow performance of a magnetic
drum as main storage. One was to simply spin the drum
faster. This puts limits on the size of drum and total memory
capacity suffers. A second technique was to use a system in which
each instruction specifies the address of the subsequent instruction
allowing optimum performance but making the programming quite
difficult. The Datatron used a third technique which placed a read
head one-tenth of a revolution apart from a write head and thus created
a sort of magnetic delay-line with access ten times as fast as the main
memory on the drum. This introduced some programming complexity
but not nearly as much as the previously described method.
Ease of Programming. Customers noted three features that
made the Datatron easy to program. First was its use of the binary-coded-decimal
number system. Programmers and operators were looking at ten-digit
decimal numbers, where each digit was represented by a four bits having
the values of 1,2 4 and 8. Second was the presence of a breakpoint
switch on the console. Setting this switch allowed pre-coded
stopping points in the program to become active, halting the machine for
a readout of the registers. "Step Mode" allowed
execution of the program instructions, one at a time while observing the
results. The combination of step mode following a breakpoint,
allowed a programmer to follow the program flow in a style not
frequently seen until the introduction of the personal computer.
Floating Point Arithmetic. The Datatron was optionally
equipped with hardware for floating point arithmetic. Implemented
by John Alrich, this was a refrigerator-sized cabinet that was attached
to the left end of the otherwise symmetric cabinet that made up the
Datatron CPU. With this option in place, the Datatron could handle
ten-digit numeric computations or floating-point numbers with an eight
digit mantissa and two digit exponent. With full multiply and
divide capabilities the Datatron now could handle numbers ranging from
10-49 to 1050 When Alrich first encountered his
new marketing Vice President, Ed McCollister, McCollister told him that
the new cabinet was not worth its weight in gold, it is worth its weight
in diamonds. This box would give ElectroData and later Burroughs
access to the scientific engineering market as well as the commercial
market they were initially targeting.
Tape subsystem. The three-quarter inch wide magnetic
tapes used on the Datatron had individually addressable blocks of
data. A single tape held two sets of tracks, each with ten
thousand blocks. Each block contained twenty words of data.
With five alphanumeric characters in a word this gave you a maximum of
two million characters of data on a reel of tape. Not much by
today's standard. But in those days, we would look at it as
containing twenty-five thousand IBM cards and that is a stack almost
seventeen feet tall. That was a lot of student records, utility
bills or insurance records. The beauty of the Datatron tape system
was that it could search for a block of data on the tape without
stopping to wait. The CPU would give the tape controller a command
to search for block 4963 and the tape controller would handle the
job. The CPU just had to check back periodically and see if the
block was found yet. Up to ten tape drives could be hung on a
system. When a block was read into memory, it could be modified
and written back out onto the tape. (Yes you might want to make a
backup before beginning this type of update!)

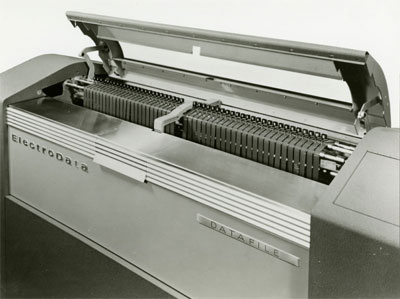

Datafile subsystem. One of the more remarkable
peripherals ever developed for any computer. This was a random
access device. Remember, the disk drive had not yet been invented
and drum memory was frightfully expensive. Tape access was
relatively slow. It would take about eight minutes to move to the
end of a reel of tape. What the Datafile did, in effect, was to take
five reels of magnetic tape and split it up into fifty small
chunks. These were suspended parallel to one another in a large
bin (Some called it a coffin) and could be addressed individually.
Any of the one hundred thousand blocks could be accessed in an average
of sixteen seconds. You could think of it as a disk drive with one
hundred tracks but revolving very slowly at about two revolutions per
minute. Put ten of these Datafile systems together and you would
have random access to any of one million blocks of data. This was
the key to to the door for Burroughs entry into several insurance
companies who bought Datatrons. When introduced in December of
1956, Burroughs claimed a backlog or orders totaling $2 million for the
$75,000 device.
Courtesy of the Charles Babbage Institute, University of
Minnesota, Minneapolis.
Cardatron subsystem. The input and output of data on the
Datatron was handled by conventional IBM punched card accounting
machines. In most cases an IBM 089 Collator served as card reader
and an IBM 407 Accounting Machine served as the printer. The
Cardatron Subsystem on the Datatron allowed a programmer to pre-program
and load a "format band" for the printer that handled spacing,
zero suppression etc. The programmer could subsequently send a
string of perhaps thirty characters to the Cardatron system that would
be spaced appropriately across the printed line. While the
Cardatron and printer were handling this line, the Datatron was
calculating and preparing the next line.
It Had a Good Pedigree
Cliff Berry of the ABC, Atanasoff-Berry-Computer, the predecessor to
all electronic computers. Berry was a senior scientist with
Consolidated Engineering specializing in the design of Mass
Spectrometers, Consolidated's principal product line. He was the
driving force behind Consolidated's venture into computers. He
and a colleague had earlier patented an analog computer for use in
handling the large amounts of data coming from his Mass
Spectrometers. Although he was not officially on the design team,
he sat in on the lectures by Selmer and Huskey that introduced
Consolidated's designers to the digital computer.
Ernst Selmer, a Norwegian mathematician specializing in number
theory and cryptography. Selmer had spent time at Princeton working with
Von Neumann's group on the IAS computer in 1951. The IAS was the
fastest computer in the world when it was fully operational in
1952. Selmer had later moved out to California in early 1952 and
was a visiting lecturer in the mathematics department at Cal
Tech. He also consulted at Berkeley where he designed the
add-subtract control for the CALDIC. He was
recommended to CEC management by Von Neumann and ended up designing much
of the Datatron arithmetic unit. While Selmer is a very key player
in the Datatron development, he is difficult to research outside
of his Datatron role since his cryptographic work was so secret that he
was not allowed to even report his consulting income to the Norwegian
tax authorities.
Harry Huskey, an American mathematician who had worked on the ENIAC
and EDVAC projects at the University of Pennsylvania, worked at
Teddington England with Alan
Turing in 1947 on the prototype Pilot ACE computer. He later moved to California and
designed the SWAC computer for the National Bureau of Standards on the
UCLA campus. Completed in July 1950, the SWAC was the fastest
computer in the world until Von Neumann's IAS computer was
completed. Huskey's contributions to the Datatron were of a
general educational nature for the design team.
Ida Rhodes,
one of the pioneers of the computer industry. Better known for her
role with the SEAC at the National Bureau of Standards and work with the
Univac at the Census Bureau, Rhodes was another consultant hired by CEC
during late 1952. She suggested the Breakpoint technique that was
ultimately incorporated into the Datatron. Gerturd
Blanch, Ida Rhodes' mentor was also directly employed by CEC for a
few months in late 1953.
Frederic
G Withington, later a noted author and industry consultant,
wrote the Cardatron manual. He describes that first assignment in
an article here. (Since that link leads you to the IEEE's $19
electronic brick wall, I'll quote a bit of it for you.)
As
soon as I had reported, he said, “Write
the Cardatron manual.” I wondered, “how
do you write?” and “what’s a manual?’ and verbalized the
question “what’s the Cardatron?” He said, “Find out from the
design engineers and let us know.”
It Did the Right Stuff - Perhaps Being A Bit of a Publicity
Hog too.
On Friday night, December 30 of 1955, the Datatron forecast the
results for the five major bowl games. It correctly forecast the
winners of the Rose, Orange, Sugar and Cotton bowls and the results were
announced on the 6:15 newscast of KCOP-TV, channel 13. The only
miss was on the Alligator bowl where the Datatron had forecast a
tie. This is most likely the first widely disseminated
"computer prediction" for a sports event.
In 1956 it is credited with composing the first computer-generated
melodies. The composition, "Push-Button Bertha" with
lyrics by composer Jack Owens was featured on KABC-TV in Los Angeles
In 1957 it was the star of the show, playing blackjack as CalTech
showed off their Electronic Brains."
In 1957 it translated the headlines in Pravda from Russian to English.
On February 28, 1957, the New York Times introduced the new Standard
& Poor 500 Stock Index calculated hourly in Boston on a the
Datatron 205. A second article about the new average mentioning
the Datatron appeared on March 5. (The S&P was at 44.06)
In 1961 during the first launch of a Saturn rocket, the Datatron 205
analyzed real-time guidance data from a tar-paper shack at Cape
Canaveral.
It Was in a Lot of the Right Places (For
a full list of sites and delivery dates see page
3 of this list compiled by the VIP Club, a group of Unisys retirees.)
Cal Tech's Jet Propulsion Laboratory (Serial number 1)
Purdue University (Spring of 1954)
Allstate Insurance
Minnesota Mutual Insurance
General Insurance
U.S. Army, Redstone Arsenal, multiple installations
U.S. Navy, multiple installations
Babcock & Wilcox
Fluor Corporation
Nuclear Development Corporation
NASA (It was actually used for real-time data reduction on the first
two Saturn launches in 1961-62 )
Melpar (It was used to calculate the Standard & Poor's 500 stock
average when this average was introduced in 1957)
Alan Perlis The first head of the Computer Science department
at Purdue who badgered ElectroData into including the Floating Point
unit as a Datatron option. Perlis had also suggested glass doors
for the front of the cabinets. That suggestion was not
implemented.
J B Rosen The originator of
Rosen's Method for non-linear
programming utilized the machine while he was at Shell Oil.
Tom Lazear,
founder and CEO of VersaCAD, took the first tentative steps into the
world of Computer Aided Design while working on a Datatron at Fluor in
1959. Lazear worked with Fluor engineer Eli Czerniak to create
programs that would aid in the design of pressure vessels.
Peter
Toma, Hungarian-born computer scientist and linguist who would
later develop the SYSTRAN machine translation system got his start on
the Datatron at Cal Tech in 1956. The translation efforts on the
Datatron were memorialized in this photo which appeared in the January,
1958, issue of Popular Mechanics.
It Had a Great Name
Datatron Say it out loud! Even the later Burroughs
models had this name emblazoned on the CPU cabinet. And the name
has an interesting origin. In 1954, planners at IBM had begun
looking at a new machine that would unify their commercial and
scientific machine architectures. The proposed new system was
defined in a series of thirty-eight memos and with a project name of Datatron.
Shortly after this system was shelved, ElectroData hired IBMer, Ed
McCollister, in early 1955 to head the marketing division for their new computer.
He undoubtedly brought the name with him.
No Serious Computer Museum is Complete Without a Datatron
(or at least a few manuals)
The American Computer Museum
in Bozeman, Montana has a full system. This one is the Pacific
Power and Light system from Portland, Oregon that our second U of P
system provided backup for. (Photo courtesy of Norton Bell, a member of the
original CEC design team. May 2008)
The Computer History Museum
in San Jose, California has a Datatron. (Photo courtesy of Norton Bell, a member of the
original CEC design team. August, 2008)
The University of Virginia's Computer Museum in Charlottesville,
Virginia holds a fairly good set of Datatron
manuals. Portions are available online.
On September 15, 1965, I settled down at home in front of our Hallicrafters
black and white television set to watch the premier episode of Lost
in Space.
The tension is building as we are introduced to the Robinson family and
we fear for their lives as we discover the diabolical intentions of Dr.
Smith. As the camera pans around the spacecraft, three Burroughs
205 consoles come into view controlling the Jupiter 2. Can you
say, "Rolling on the Floor, Laughing Out Loud?"
Barely a year later, Batman has installed his own 205 in the
Batcave!
Stan Brewer has inventoried a great collection of TV and movie
appearances by the Datatron here.
What Made a Datatron Installation Successful?
Success or failure of an individual Datatron site depended largely on the
capability of the maintenance staff. Known as "Field
Engineers" based on CEC's earlier designation, these intrepid folks had to master
and in some cases invent techniques for minimizing the frequency and duration of
machine outages. On a separate page I have
described some of these techniques as practiced by one of the best.
Do you have comments or experience with the Burroughs 205 that
you would like to share? I have set up a
blog where you can share your own stories about the Datatron. Or, send
me an e-mail.
Change History:
Initial Publication, 3/26/2008
Added Maintenance Page and link, 4/18/08
Corrected a few spelling errors and added the specific number of Datatron
memos at IBM, 4/23/08
Added a few links and some "white space", 6/12/2008
Added the link to the VIP Club's list of customers and delivery
dates. Added the reference to the Charles Babbage Institute's Datatron
papers. Corrected two name spellings,
8/3/08
Added more detail and two photos about the 1952-1955 era, 8/29/08
Added two photos on this page courtesy of Norton Bell. Added two
additional pages containing highlights from the development project and
pricing data, 10/29/08
Added the hardware package page with photos courtesy of Bob Kubic,
12/18/08. Also caught a couple of grammar issues and added the salary
of electrical engineers in 1955-56 on the pricing page.
Clarified the fact that Harry Huskey worked at Teddington, England in 1947
and added a link to his autobiography on Amazon.com Added a link to
the Flexowriter entry at the museum of the University of Amsterdam.
Also added a link to Tom Kilburn's description of the development of the
index register - thanks to Dik Leatherdale of the (British) Computer
Conservation Society for this information. 01/08/2009
Added some additional links and narrative to the Berry, Huskey and Selmer
section. 01/10/2009
Fixed more of those darned typos. Added a couple of links and
details to Huskey and Selmer on the Chronology page. Added an
explanation of the CEC project numbering scheme. 03/14/2009
Added two more pictures to the hardware package page. Created the
Sibyl Rock page. 3/31/2009
Added "Ease of Programming" paragraph to the home page and
included Ida Rhodes on the pedigree list of consultants. 4/4/2009
Added the Frederic Withington Cardatron manual reference on the pedigree
list. 04/16/2009
Created the Edwin S. McCollister page.
Added a reference to the first football bowl game forecast on the home
page. Noted use of a Datatron by Tom Lazear. Corrected a
reference to Burroughs activities in Philadelphia thanks to Loren Wilton,
former tech writer in Pasadena. All on 8/21/09.
Minor additions to the Ed McCollister page. 8/24/09
Added the photo of "Dr. K.W." at the Oregon Centennial to the
maintenance page, along with the history of all four Portland Datatrons.
9/23/09.
Added prices for the IBM peripherals and the information about Peter Toma
and machine translation. Corrected some remaining failures to
capitalize the "D" in ElectroData. Also corrected the designation of "Field
Engineers" not "Customer Engineers" as pointed out by
long-time Burroughs employee, Loren Wilton. 10/29/2009
Added the table of MTBF for Electrodata and many other computers to the
maintenance page. 10/30/2009
Added photo of Datafile to home page and photo of Peter Toma with Datatron
on pricing page. Made minor additions to the Portland Datatrons on the
Maintenance Page. 11/27/2009
Added information on McCollister's opera interests to his page along with
the count of district sales offices. Added links to key Datatron
patents on the Chronology page. Added links to Knuth's documentation
of the ALGOL compiler on the Languages page. 12/18/2009.
Coming Soon:
More about punched-card input-output
More about the Datafile
A JAVA Based Datatron Emulator
Suggestions and Corrections are always welcome! The
editing power of the World Wide Web is phenomenal.
University of Portland computer center director, Peter C.
Knobloch explains some of the finer points of programming
